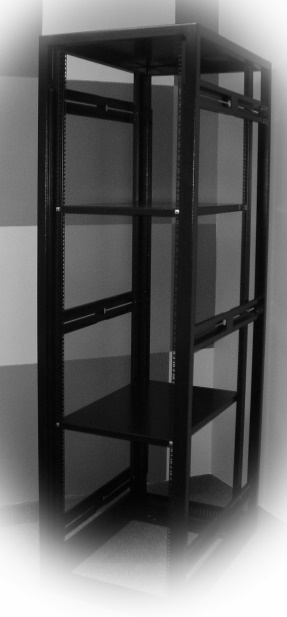

Enterprise Frame
The Enterprise is PES's most popular server and storage frame. It incorporates some of our most innovative design concepts such as recessed field reversible doors, "Zero Clearance" sides & Coupling, and our signature vent pattern on the front and rear base panels. Our pre-configured frame or full enclosure options make ordering simple.
Click Here for Enterprise CabinetsSPECIFICATIONS
- Fully welded 1.50" x 1.50" tubular steel construction
- Up to 2000lbs rackable load rating
- Deisgned to meet Zone 4 NEBS requirments
- 19" or 23" rack mountable
- Hole spacing per EIA-310D standard
- Mounting rails fully adjustable, front to rear (cage nut or tapped)
- Easy lift off, field reversible recessed doors
- Recessed side panels and "zero clerance" coupling
- High durability textured powder coat
- Available in 5 standard colors
(-WH2 White,-BK2 Black, -GR2 Light Gray, -BL2 Blue and -GRG Dark Gray) - Custom colors are also available
|
|
Rack
|
||||
|
PART
#
|
H
|
W
|
D
|
Description
|
Space
|
|
EF7225C-*
|
84"
|
24"
|
30"
|
Enterprise Frame, 84"H x 24"W x 30"D w /cage nut rails
|
45U
|
|
EF7225T-*
|
84"
|
24"
|
30"
|
Enterprise Frame, 84"H x 24"W x 30"D w /10-32 tapped rails
|
45U
|
|
EF723C-*
|
84"
|
24"
|
36"
|
Enterprise Frame, 84"H x 24"W x 36"D w /cage nut rails
|
45U
|
|
EF723T-*
|
84"
|
24"
|
36"
|
Enterprise Frame, 84"H x 24"W x 36"D w /10-32 tapped rails
|
45U
|
|
EF7235C-*
|
84"
|
24"
|
42"
|
Enterprise Frame, 84"H x 24"W x 42"D w /cage nut rails
|
45U
|
|
EF7235T-*
|
84"
|
24"
|
42"
|
Enterprise Frame, 84"H x 24"W x 42"D w /10-32 tapped rails
|
45U
|
